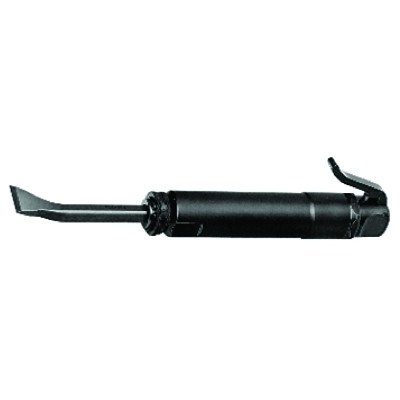

CHIPPING HAMMER

The Weld Flux Chippers provide heavy and medium duty tools to accommodate a variety of light chipping applications in fabrication shops, foundries, refineries, and other areas
Both can be converted to needle scalars also if necessary
Type WF retainer

Specifications

Air Consumption [Max]

4.700 CFM

Air Consumption [Nom]

4.700 CFM

Bit/Blade Mounting Type

Quarter Octagon Female

Bore Diam [Nom]

15/16 in

Control Type

On/Off

Cycle Rate [Max]

4

Cycle Rate [Nom]

4

Handle Type

Body Grip

Height [Nom]

3.300 in

Hose Size [Min]

3/8 in

Inlet Size

1/4 in NPT(F)

Length [Nom]

12.900 in

Shank Diam [Nom]

1/2 in

Stroke Length [Nom]

1 in

Type

Chipping/Scaling Hammer

Width [Nom]

3.800 in

Wt.

4.46 lb
