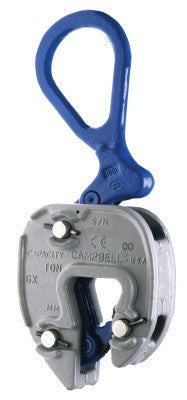

1/2TON 1/16-5/8 GX CLAMPW/ CAM WEAR IN

"GX" clamp is entirely drop forged and heat treated
Can be used for both vertical and horizontal-to-vertical lifting
Exclusive feature is a patented wear indicator system
When any of cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam
Shackle and "G" link combined into one part for fewer stress points and less chance of side loading damage

Specifications

Grip Cap. [Max]

5/8 in

Grip Cap. [Min]

1/16 in

Locking Type

Load Activated

Material

Forged Steel

Mounting

Fixed Eye

Neck Depth

2-3/16 in

Type

Plate Clamp

Working Load Limit

1/2 ton
