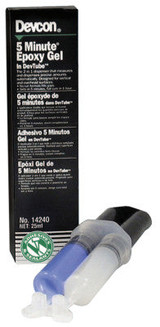

1-OZ DEV-TUBE 5-MINUTEEPOXY GEL

Fast-curing, thixotropic, non-migrating adhesive designed for filling gaps and bonding rough or smooth surfaces
Disappearing blue coloring tells you when the product is thoroughly mixed for easy use
Good solvent resistance to gas, oil, and other solvents
Non-sag which makes it ideal for use on vertical surfaces
Excellent gap filling qualities without tremendous shrinkage

Specifications

Adhesive Tensile Shear

2

Applicable Materials

Ceramic; Concrete; Metal; Plastic; Wood

Applications

Encapsulating; Potting; Structural Bonding

Capacity Vol. [Nom]

25 mL

Chemical Compound

Epoxy

Color

Amber; Opaque

Dielectric Strength

440 V/mil

Fix Cure Time @ Temp.

10 min to 15 in @ 72 F

Full Cure Time @ Temp.

48 hr

Gap Fill [Nom]

0.01 in to 0.05 in

Hardness [Nom]

80 Shore D

Packing Type

Dev-Tube

Physical Form

Liquid; Viscous

Ratio

1:1

Resistance

Corn Oil; Cutting Oil; Gas; Kerosene; Mineral Spirits; Motor Oil; Other Solvents

Specific Gravity [Nom]

1.16

Temp. Range [Max]

200 F

Temp. Range [Min]

-40 F

Tensile Strength [Nom]

2

Viscosity [Nom]

10

Working Time [Max]

7 min

Working Time [Min]

4 min

Working Time [Nom]

4 min to 7 min @ 72 F
