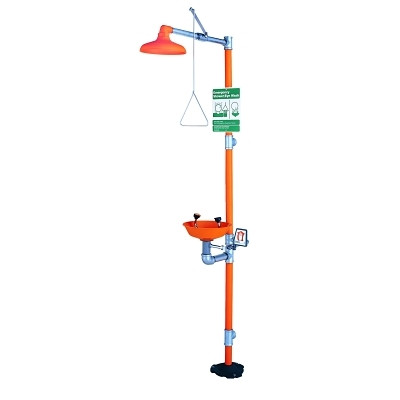

EYE WASH & SHOWER SAFETYSTATION W12" ORANGE

Eye wash is activated by flag handle, two GS-Plus spray heads deliver a flood of water for rinsing eyes
Shower Valve: 1 in IPS chrome plated brass stay-open ball valve, furnished with stainless steel actuating arm and 29 in stainless steel pull rod
Spray Head Assembly: Two GS-Plus spray heads, each has a flip top dust cover, internal flow and filter to remove impurities from the water flow
Eye Wash Valve: 1/2 in IPS chrome plated brass stay-open ball valve, remains in operation until flag handle is returned to closed position
Pipe and Fittings: Schedule 40 galvanized steel, furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance

Specifications

Applications

Rinsing eyes

Bowl Diam

11-3/4 in

Bowl Material

ABS Plastic

Color

Safety Orange

Flow [Nom]

20 GPM

Includes

Plastic Bowl

Inlet Size

1-1/4 in

Inlet Type

Female Top; Side

Material

Stainless Steel; ABS Plastic; Chrome Plated Brass; Galvanized Steel; Polyethylene

Outlet Size

1-1/4 in

Quantity

1 EA/EA

Shower Head Diam

10 in

Shower Head Material

ABS Plastic

Type

Eye Wash & Shower Station

Usage

Eyewash and shower safety station
