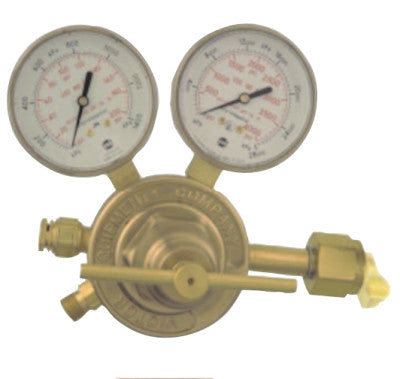

SR360A-300 REGULATOR(PACKAGED)

Single stage design
Stem type seat mechanism
Delrin cap bushing for smooth adjustments
External self reseating relief valve not designed to protect downstream apparatus

Specifications

Body Material

Forged Brass

Diaphragm Material

Fabric-Reinforced Neoprene

Diaphragm Size

2 3/4 in

Filter Material

Bronze; Sintered

Gas Type

Acetylene

Gauge Size

2 1/2 in

Inlet Connection

CGA 300

Inlet Pressure [Max]

3

Outlet Connection

9/16 in - 18

Outlet Pressure [Max]

15 psig

Outlet Pressure [Min]

2 psig

Wt.

3 1/2 lb
