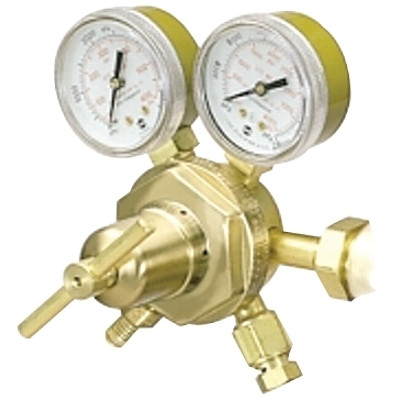

TPR-250-500-580REGULATOR(MEDALIST BOXED

Forged brass body and housing cap
Internal relief valve
Single stage construction
Stem type seat mechanism
Neoprene diaphragm

Specifications

Body Material

Forged Brass

Depth [Nom]

4-1/4 in

Flow Range

10 - 250 psig

Gas Type

Inert Gas

Gauge Size

2 in

Handle Type

T-Handle

Height [Nom]

5-1/8 in

Inlet Connection

CGA 580

Inlet Pressure [Max]

3000 psig

Length [Nom]

6.38 in

Outlet Connection

1/4 in - 37 Flare

Outlet Pressure [Max]

500 psig

Outlet Pressure [Min]

10 psig

Packing Type

Boxed

Type

Regulator

Width [Nom]

6-3/8 in
