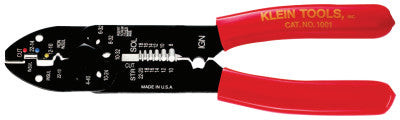

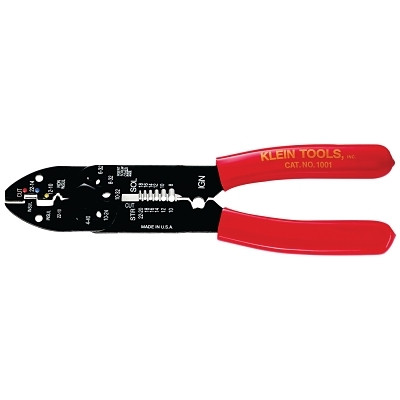

ALL PURPOSE TOOL

Two wire cuttersone at tip, the other halfway back near stripping holesdouble the utility of this tool
Crimps 7-8 mm insulated and non-insulated terminals, lugs and splices
Cuts and strips 8-22 AWG solid and 10-26 AWG stranded wire
Cleanly shears bolts
Pivot nut adjusts tension

Specifications

Applications

Cuts and Strips 8-22 AWG Solid and 10-26 AWG Stranded Wire; Shears Bolts; Crimps 7-8 mm Terminals Lugs and Splices

Cable/Wire Size [Max]

26 AWG

Cable/Wire Size [Min]

10 AWG

Capacities

10 to 26 AWG

Handle Color

Red

Handle Material

Steel Core; Plastic Dipped

Length [Nom]

8-1/2 in

Material

Steel

Overall Length [Nom]

8-1/2 in

Strips Solid Wire [Max]

22 AWG

Strips Solid Wire [Min]

10 AWG

Strips Stranded Wire [Max]

26 AWG

Strips Stranded Wire [Min]

8 AWG
