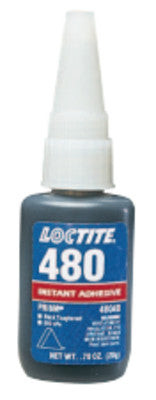

20GM PRISM 480 INSTANT ADHESIVE BLK TOUGHENED

Uniquely formulated for applications where impact, vibration and peel forces are experienced
Provides side impact resistance far exceeding the performance of common instant adhesives
Chemical, humidity and thermal resistant
Excellent shear strength

Specifications

Adhesive Tensile Shear

3800 psi

Applicable Materials

Brass; Bronze; Copper; Iron; Nickel; Soft Steel

Application Temp. Range [Max]

180 F

Application Temp. Range [Min]

-65 F

Applications

Industrial

Capacity Vol. [Nom]

20 g

Capacity Wt. [Nom]

20 g

Chemical Compound

Ethyl Cyanoacrylate

Color

Black

Curing Method

Faster Cure

Fixture Time

90 sec

Full Cure Time @ Temp.

24 h @ +180 F

Gap Fill [Nom]

0.006 in

Language

English

Packing Type

Tube

Resistance

Chemical; Humidity; Thermal

Specific Gravity [Nom]

1.1

Temp. Range [Max]

180 F

Temp. Range [Min]

-65 F

Type

Adhesive

Usage

Bonding; Gap Filling

Viscosity @ Temp. [Nom]

200 cP

Viscosity [Max]

200 cP

Working Time [Nom]

90 sec.

Wt.

0.09 lb
