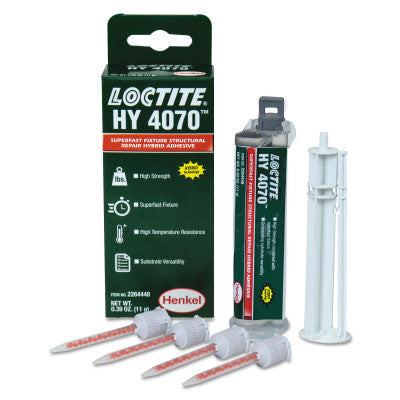

LOCTITE HY 4070 CR 11G
LOCTITE

LOCTITE HY 4070 CR 11G

(No reviews yet) Write a Review
$270.40
SKU:
442-2264448
UPC:
079340011717
Width:
1.38 (in)
Height:
1.96 (in)
Depth:
5.51 (in)
Quantity:
10 EA = 1 CA
Adding to cart… The item has been added
LOCTITE HY 4070 CR 11G
LOCTITE HY 4070 CR 11G

Description

Two-part, transparent, cloudy colorless to pale yellow cyanoacrylate/acrylic hybrid gel adhesive
Provides a fast fixture at room temperature
It suits various substrates including most plastics, rubbers and metals
Used where complete cure of excess adhesive, as well as temperature and moisture resistance, is required
Non-sag

Specifications

Adhesive Tensile Shear
0.1 N/mm
Applicable Materials
Metal; Plastic; Rubber
Application Temp. Range [Max]
+25 C
Applications
Bonding
Capacity Vol. [Nom]
10 mL
Chemical Compound
Ethyl 2-Cyanoacrylate; Methacrylate
Color
Clear
Elongation [Nom]
4.9 %
Fix Cure Time @ Temp.
4 min to 6 min (2 mm Gap) @ +25 C; <60 s (0.05 mm Gap) @ +25 C
Fixture Time
4 min to 6 min (2 mm Gap); <60 s (0.05 mm Gap)
Flash Point [Nom]
+176 F to +199.4 F (Part A); +230 F (Part B)
Gap Fill [Nom]
0.05 mm
Hardness [Nom]
65 Shore D
Language
English
Packing Type
Cartridge
Physical Form
Gel
Ratio
10:1
Resistance
Moisture; Temperature
Specific Gravity [Nom]
1.05 to 1.1
Temp. Range [Max]
+25 C
Tensile Strength [Nom]
2117 psi
Type
Hybrid Gel Adhesive
Usage
Bonding
Viscosity [Max]
1300 mPa (Part A); 30 mPa (Part B)
Viscosity [Min]
1 mPa (Part B); 200 mPa (Part A)
Viscosity [Nom]
1 to 30 mPa (Part B); 200 mPa to 1300 mPa (Part A)
VOC
< 3 %
Working Time [Max]
4 min
Working Time [Min]
1 min
Working Time [Nom]
1 min to 4 min
Wt.
11 g
