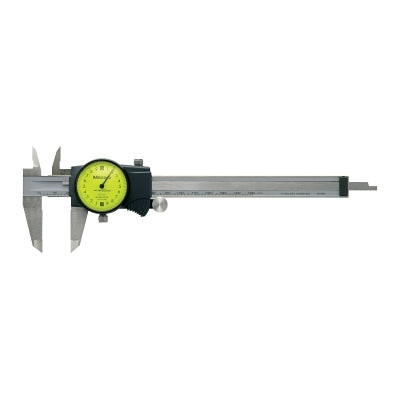

CALIPER DIAL .1"/REV 0-6" .001"
MITUTOYO

CALIPER DIAL .1"/REV 0-6" .001"

(No reviews yet) Write a Review
$185.47
SKU:
504-505-742J
UPC:
946368688350
Width:
4.60 (in)
Height:
1.55 (in)
Depth:
10.70 (in)
Quantity:
1 EA = 1 EA
Adding to cart… The item has been added
CALIPER DIAL .1"/REV 0-6" .001"
CALIPER DIAL .1"/REV 0-6" .001"

Description

New designed dial movement for ultra smooth sliding and high shock protection
Titanium nitride (TiN) coating is applied to the sliding surface to increase wear resistance
Lock screw for dial bezel and for holding the sliding jaw position

Specifications

Accuracy
0.001 in
Bar Width
16 mm
Case Material
Plastic
Finish
Titanium Nitride
Graduation(s)
0.001 in
Includes
Plastic Case
Inside Range Min - Max
0 - 6 in
Length [Nom]
231 mm
Lower Jaw Length
40 mm
Measuring System
Inch
Model
505-742
Outside Jaw Depth
1-9/16 in
Outside Range Min - Max
0 in to 6 in
Quantity
1 each
Range [Max]
6 in
Range [Min]
0 in
Range/Revolution
0.1 in
Tip Material
Stainless Steel
Type
Dial Caliper
Upper Jaw Length
21 mm
Usage
Inside/Outside/Step and Depth Measurement
Wt.
175 g
