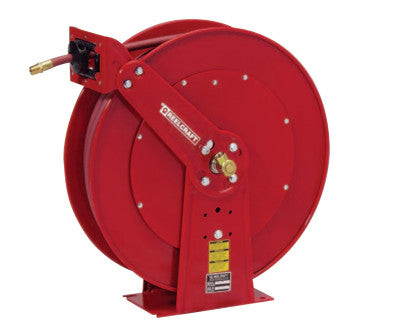

HOSE REEL 1/2X100 AIR/WATER
$1,259.29
- SKU:
- 523-82100OLP
- UPC:
- 699567000273
- Width:
- 10.50 (in)
- Height:
- 10.50 (in)
- Depth:
- 28.00 (in)
- Quantity:
- 1 EA = 1 EA
Description
The steel guide arm and base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weightThe full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service lifeDeclutching arbor virtually eliminates possibility of spring damage due to reverse windingIndividually powder coated components offer the maximum protection from premature corrosion
Specifications
- Height [Nom]
- 25-3/8 in
- Hose I.D. [Nom]
- 1/2 in
- Hose Length
- 100 ft
- Hose O.D. [Nom]
- 3/4 in
- Inlet Size
- 1/2 in NPT(F)
- Length [Nom]
- 24 in
- Material
- Steel
- Operating Pressure [Nom]
- 300 psi
- Outlet Size
- 1/2 in NPT(M)
- Type
- Low Pressure Air/Water Reels
- Width [Nom]
- 10-1/8 in
