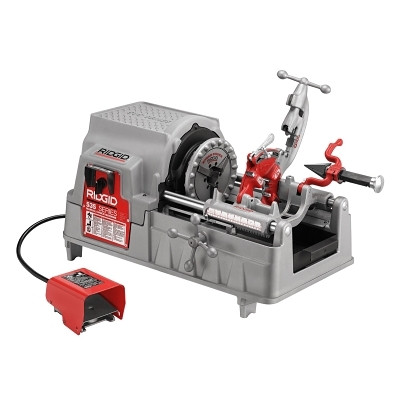

535 THREADING MACHINE
$11,068.33
- SKU:
- 632-93287
- UPC:
- 095691932877
- Width:
- 43.50 (in)
- Height:
- 27.50 (in)
- Depth:
- 25.25 (in)
- Quantity:
- 1 EA = 1 EA
Description
Large chip tray and oil reservoir makes the 535 ideal for longer, uninterrupted threadingGenerous top cover for keeping tools and fittings handyHigh clearance carriage makes threading easierSpeed Chuck, with three replaceable rocker-action jaws inserts, grips work piece instantlyCan be used with geared Models 141 and 161 threaders (sold separately)
Specifications
- Amps [Nom]
- 15 A
- Frequency [Nom]
- 50 Hz to 60 Hz
- Includes
- (1) 1/2 in to 2 in NPT Hammer Chuck Machine 36 RPM; (1) 341 Reamer Assy with 5-Flute Cone
- Phase
- Single
- Pipe Cap. [Max]
- 2 in
- Pipe Cap. [Min]
- 1/8 in
- Power Cap. [Max]
- 1/2 hp
- Rod Diam. - TPI
- 1/4 in to 2 in
- Speed [Nom]
- 36 RPM
- Threading Cap. [Max]
- Geared Threaders Sold Separately; 4 in (141); 6 in (161)
- Threading Cap. [Min]
- Geared Threaders Sold Separately; 2-1/2 in (141); 4 in (161)
- Type
- 10-Pc Model 535 Threading Machine with Accessories
- Voltage [Nom]
- 115 V AC
