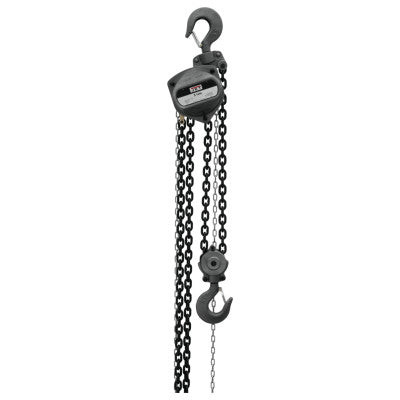

S90-300-15 3 TON HAND CHAIN HOIST W/ 15' LIFT

Grade 80 black oxide coated load chain for added durability
Heat-treated load plates
Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
Needle bearings support the load sheave to increase efficiency and promote smooth operation

Specifications

Chain Size [Nom]

8 x 24

Head Room [Nom]

20-1/2 in

Lifting Height/Take-Up [Nom]

15 ft

Material

Steel; Grade 80 Black Oxide Coated Load Chain

Model

S90-300-15

Mounting

Hook

No. of Falls

2

Power Source

Manual

Pull Force [Max]

86-4/5 lb

Quantity

1 EA/EA

Series

S90 Series

Type

Contractor Grade Hoist

Wt. Cap. [Nom]

3-ton
