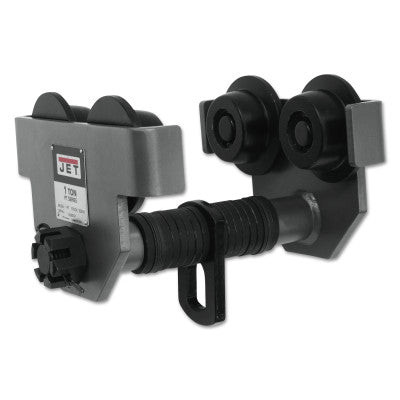

PT-1 1 TON PLAIN TROLLEYFITS 3"-8" I-BEAM

Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
Built-in bumper guards on the side plates increase safety and extend trolley life
Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers

Specifications

Beam Height [Max]

19 in

Beam Height [Min]

4 in

Beam Width [Max]

8 in

Beam Width [Min]

3 in

Corner Radius [Min]

39 in

Load Cap. [Max]

1 ton

Load Cap. [Nom]

1 ton

Type

Manual Dragged Trolley

Wt.

33 lb
