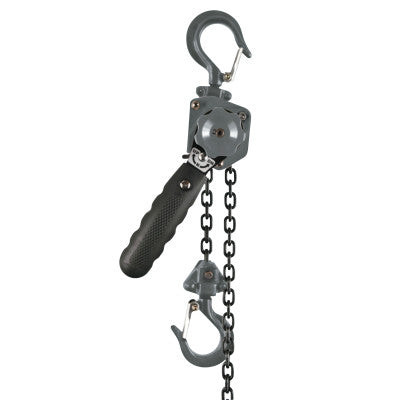

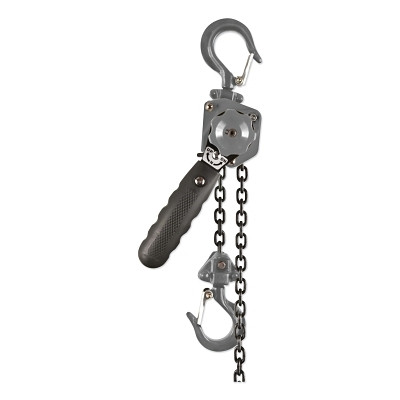

JLP-025A-10 1/4 TON MINI-PULLER WITH 10' LIFT

Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
Industrial rated alloy steel hooks rotate 360 for easy rigging
Hooks slowly stretch to indicate an overload situation increasing jobsite safety
Cast steel safety latches are secured with Allen screws and lock nuts
Needle bearing design increases efficiency and promotes smooth operation

Specifications

Handle Length [Nom]

6 in

Head Room [Nom]

8-1/4 in

Hook Opening

1-2/5 in

Lifting Height/Take-Up [Nom]

10 ft

Material

Steel; Grade 80 Black Oxide Coated Load Chain

Model

JLP-025A-10

Mounting

Hook

No. of Falls

1

Pull Force [Max]

60 lbft

Wt.

5 lb

Wt. Cap. [Nom]

1/4 t
