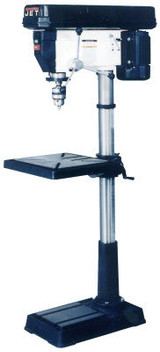

JDP-20MF 1.5HP-1-PHASE FLOOR MODEL DRILL PRESS
$2,489.91
- SKU:
- 825-354170
- UPC:
- 662755104121
- Width:
- 26.50 (in)
- Height:
- 12.90 (in)
- Depth:
- 58.00 (in)
- Quantity:
- 1 EA = 1 EA
Description
Cast iron headHead casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended lifeMassive T-slotted production work table
Specifications
- Bit/Blade Mounting Size Symbol
- Morse #3
- Center to Side Distance
- 10-1/4 in
- Chuck Size
- 3/4 in
- Chuck to Base Distance [Nom]
- 46-3/4 in
- Chuck to Table Distance
- 29-1/8 in
- Control Type
- On/Off
- Drilling Cap.
- 1 in (steel)
- Includes
- Hinged Metal Belt and Pulley Cover
- No. of Speeds
- 12
- Phase
- Single
- Power Cap. [Max]
- 1-1/2 hp
- Speed [Max]
- 4
- Speed [Min]
- 150 rpm
- Stroke Length [Nom]
- 4-5/8 in
- Table/Plate Length
- 18-5/8 in
- Table/Plate Width
- 16-1/8 in
- Tilt [Max]
- 45
- Voltage [Nom]
- 115 VAC; 230 VAC
- Wt.
- 288 lb
