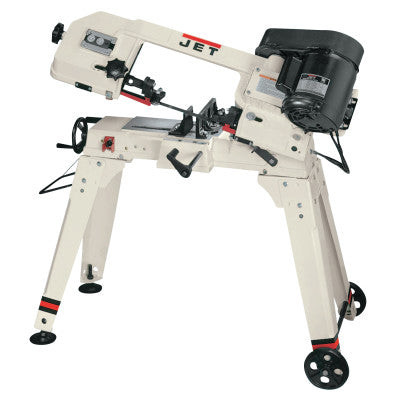

HVBS-56M HORIZONTAL/VERTICAL BANDSAW 5"X6" CAP
$1,164.60
- SKU:
- 825-414458
- UPC:
- 662755247286
- Width:
- 14.20 (in)
- Height:
- 15.70 (in)
- Depth:
- 39.00 (in)
- Quantity:
- 1 EA = 1 EA
Description
Versatility and power when cutting in either a horizontal or vertical positionHeavy-duty 14-gauge steel standBlade drive is a sealed, steel, heat treated worm driving a bronze worm gear in an oil bathHandle and wheels for easy movementBall bearing supported blade wheel
Specifications
- Amps [Nom]
- 9/4.5 - Full load amps; 10.1 - Starting amps; 4.9 - Running amps (no load)
- Blade Length [Nom]
- 64 1/2 in
- Blade Thickness [Nom]
- 0.025 in
- Blade Width [Nom]
- 1/2 in
- Control Type
- Toggle on/off switch
- Cutting Cap. 2
- 5 in (Round Stock at 90); 3 in (Round Stock at 45); 5 in x 5 in and 6 in x 2 in (Rectangular Stock at 90); 4 in x 3 in (Rectangular Stock at 45)
- Drive Gearing
- Worm Gearing
- Handle Type
- Moving Handle (used to relocate machine and not during operation of machine)
- Height [Nom]
- 41.34 in
- Length [Nom]
- 37 in
- Linear Speed [Max]
- 200 ft/min
- Linear Speed [Min]
- 80 ft/min
- Type
- Horizontal/Vertical Bandsaw
- Voltage [Nom]
- 115 V
- Voltage Type
- AC
- Width [Nom]
- 17.72 in
- Wt.
- 115 lb
