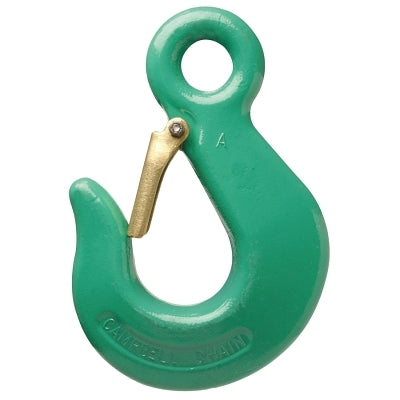

EYE SLING HOOK-9/32"-W/LATCH-GRADE 100

Drop-forged, identification tag attached to master end coupling link
System 10

Quantity 1 EA/EA

Specifications

Bail Size=0.44 in
Chain Size [Nom]=9/32 in
Distance Between Points of Lift (Headroom) [Nom]=4.060 in
Eye Inner Diam [Nom]=3/4 in
Grade=100
Height [Nom]=1 1/4 in
Hook Opening=1 in
Length [Nom]=5 5/8 in
Locking Type=Spring Loaded Latch
Material=Alloy Steel
Mounting=Eye
Overall Length [Nom]=5.560 in
Type=Fixed Hoisting Hook
Width [Nom]=3 5/8 in
Working Load Limit=4
300 lb
Wt.=1.24 lb
