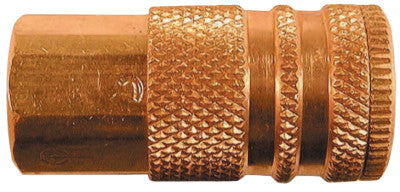

Coilflow Industrial Interchange Couplers, 1/4in (NPT) F

Connect with all 1/4 in Body Size Industrial Interchange plugs of other manufacturers
Manual operation is better suited for high vibration applications or where coupler is dragged along the ground
Quick-disconnect air fitting

Quantity 1EA

Specifications

Body Material=Brass
Cable/Wire Size [Nom]=1/4 in
Connection Type=Female/Female
Dia. [Nom]=1/4 in
Female Quick=1/4 in
Female Thread=1/4 in (NPT)
Flow @ Pressure=38 CFM @ 100 psi
Height [Nom]=3 in
Measuring System=Inch
Operating Pressure [Max]=300 psi
Operating Temp. [Max]=250 F
Shape=Straight
Thread Size [Nom]=1/4in NPT
Wt.=0.19 lb
