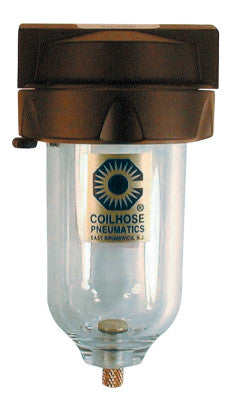

Heavy Duty Filters, Automatic Drain, 1 in Inlet, 150 psi

Removes unwanted moisture and debris from compressed air systems
Designed for fixed installations in automotive, construction, and industrial environments
The proven and consistent design ensures a long and trouble-free service life
Completely serviceable and can be disassembled with ease
Die-cast aluminum bodies
Easy maintenance
Extra large filter elements
Bayonet locking ring allows easy bowl removal by hand

Quantity 1EA

Specifications

Body Material=Die Cast Aluminum
Bowl Material=Polycarbonate
Capacity Vol. [Nom]=23 oz
Designated Fluid=Air
Dia. [Nom]=5 in
Drain Method=Automatic
Element Material=40 Micron Sintered Bronze
Flow [Max]=260 SCFM
Flow [Min]=119 SCFM
Grade=40 µ
Height [Nom]=9 in
Inlet Size=1 in
Operating Pressure [Max]=150 psi
Operating Temp. [Max]=120 F
Type=Inline
Wt.=4 lb
