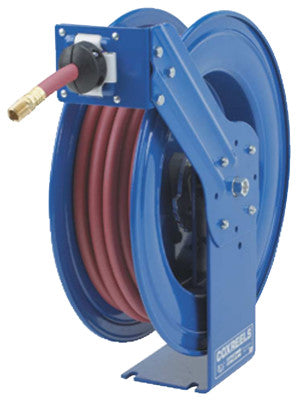

Performance Hose Reels, 3/8 in x 25 ft

Easily wraps, stores and protects hose improving efficiency
Brass NPT swivel inlet machined from solid
Factory-matched cartridge-style lubricated spring motor
Multi-position locking ratchet secures hose at desired length
Guide arm adjusts for wall, ceiling or floor mounting
Made in the U.S.A.
Multi-position locking ratchet secures hose at desired length
Rolled edges & ribbed discs for maximum strength & protection

Quantity 1EA

Specifications

Height [Nom]=14 7/8 in
Hose I.D. [Nom]=3/8 in
Hose Length=25 ft
Hose O.D. [Nom]=21/32 in
Inlet Size=3/8 in NPT
Length [Nom]=13 1/2 in
Operating Pressure [Nom]=300 psi
Outlet Size=3/8 in NPT
Type=Low Pressure Air/Water Hose Reel
Width [Nom]=6 1/2 in
Wt.=35 lb
