CM Columbus McKinnon

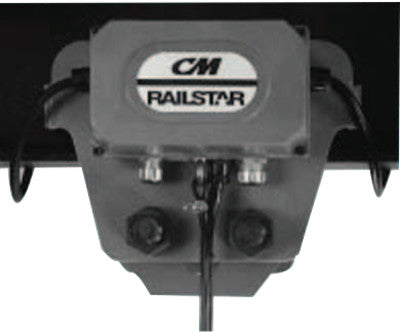

1/8-2T RAILSTAR MOTOR DRIVEN TROLLEY

1/8-2T RAILSTAR MOTOR DRIVEN TROLLEY

Regular price $5,945.80 USD
Regular price Sale price $5,945.80 USD
Sale Call for availability

Call for availability

SKU

SKU:175-0300

Fits wide range of beam sizes for maximum versatility
For use with hook suspended single speed hoists that are equipped with reversing contactor
Steel plate side frames
Steel spur gearing for optimum strength and smooth operation
Imported

Quantity 1EA

Specifications

Beam Height [Max]=18 in
Beam Height [Min]=6 in
Frequency [Nom]=60.0 Hz
Horizontal Speed [Max]=78 ft/min
Load Cap. [Max]=2 tons
Load Cap. [Min]=1/8 tons
Phase=Three
Power Cap. [Max]=1/3 hp
Power Source=Electric
Type=Powered Trolley
Voltage [Nom]=230.00 VAC; 460.00 VAC
Wheel Flange Width [Max]=6 in
Wheel Flange Width [Min]=3 3/8 in
Wt.=108 lb
