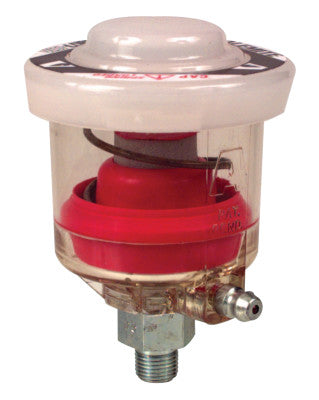

LUBRICATOR W/3 SPRINGS

Automatically controls grease flow
Refillable through standard hydraulic grease fitting
Contains no chemicals or gases
Allows grease level to be checked at a glance
Sturdy one-piece steel base and core
Safety vents prevent overfilling
Handles grease up to NLGI No. 3
For use on gear box housings and bearings, (such as king pins, universal joints, and more), where excessive pressures are not desirable

Quantity 1EA

Specifications

Body Material=Steel
Bowl Material=Plastic
Capacity Vol. [Nom]=2.20 cu in
Height [Max]=3 1/4 in
Height [Nom]=2 1/2 in
Inlet Size=1/8 in (NPTF)
Length [Nom]=3.220 in
Operating Pressure [Max]=5.8 psi; 4.6 psi; 3.5 psi
Operating Pressure [Min]=3.6 psi; 2.9 psi; 2.2 psi
Operating Temp. [Max]=150 F
Operating Temp. [Min]=-40 F
Spring Type=Heavy (Black); Medium (Black); Light (Orange)
Type=Automatic
Width [Nom]=2.400 in
Wt.=0.31 lb
