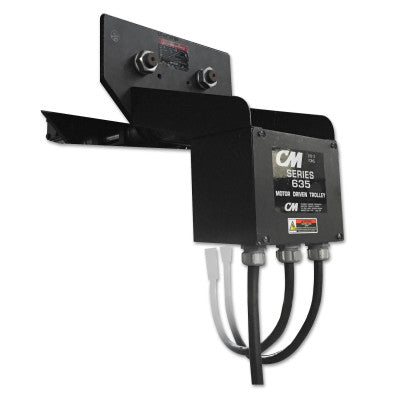

Series 635 Lodestar Motor Driven Trolleys, 2 Tons, Single Phase

Fits wide range of beam sizes for maximum versatility
Steel plate side frames
Steel spur gearing for optimum strength and smooth operation
Universal tread hardened trackwheels that operate on standard S-beams or flat flanged beams
Lubricated double-row ball bearings for high efficiency and low maintenance
Metric rated
For use with lug suspended Lodestar electric chain hoists
Gear train lubricated with non-oxidizing grease
Precision machined and hardened lift-wheel with hardened chain guides for precise chain lift-wheel fit
Gearing designed for exceptionally long life and quiet operation

Quantity 1EA

Specifications

Beam Height [Max]=15 in
Beam Height [Min]=6 in
Control Type=On/Off
Corner Radius [Min]=30 in
Frequency [Nom]=60 Hz
Horizontal Speed [Nom]=30 ft/min
Load Cap. [Max]=2 tons
Load Cap. [Min]=1/8 tons
Phase=Single
Power Cap. [Max]=60 W
Power Cap. [Nom]=1/4 hp
Power Source=Electric
Type=Powered Trolley
Voltage [Nom]=115 VAC
Wheel Diam [Nom]=4 in
Wheel Flange Width [Max]=5 5/8 in
Wheel Flange Width [Min]=3 3/8 in
Wt.=103 lb
