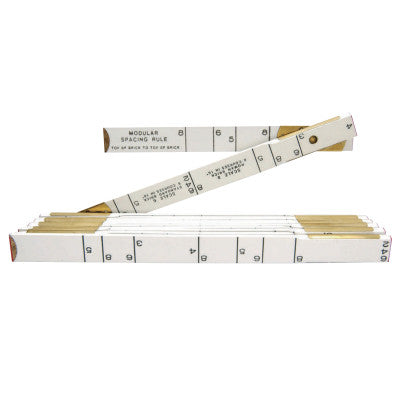

Red End Modular Spacing Rulers, 6 ft, Wood, 6 Scales

  • Sale
  • Regular price $23.38


Vendor - Apex Tool Group

SKU - 182-646LN
Description

All sections have square ends
Every joint opens on even number
Inside marked with 6 scales in a 16 in module
Scales are as follows: two courses in 16 in space (for concrete blocks and glass blocks)
Three courses in 16 in space (for facing tile)
Four courses in 16 in space (for Roan brick)
Scales include mortar space and spacing for 6 in and 12 in blocks
Outside is graduated on both edges to 1/16ths
First end section is a short section which permits butting the rule on the first 16 in module

Quantity 1EA

Specifications

Finish=Lacquer
Increment @ Scale=1/16 in @ 1 in
Length [Nom]=6 ft
Material=Wood
Measuring System=Inch
No. of Scales=6
Specialty Scales=Concrete/Glass Block; Engineered Brick; Facing Tile; Firing Tile
Type=Folding Rule
Width [Nom]=5/8 in
Wt.=0.35 lb
