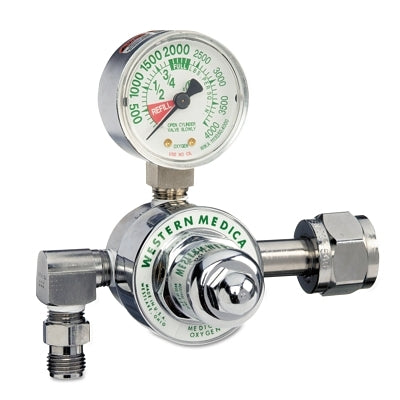

REG M1 SERIES PRESET 50PSI

Chrome-plated brass body with all brass high-pressure chamber
Internal reseating relief valve protects against over-pressurization
Sintered filter for additional safety and to extend regulator life
Available with horizontal outlet (M1A) or with 90° outlet (M1)

Quantity 1 KT/KT

Specifications

Diaphragm Material=Neoprene
Flow Range=0 to 50 psi
Gas Type=Nitrous Oxide
Gauge Size=2 in
Inlet Connection=CGA 326 Nut and Nipple
Inlet Pressure [Max]=3000 psi
Outlet Pressure [Max]=50 psi
Type=Preset with 90° Outlet
