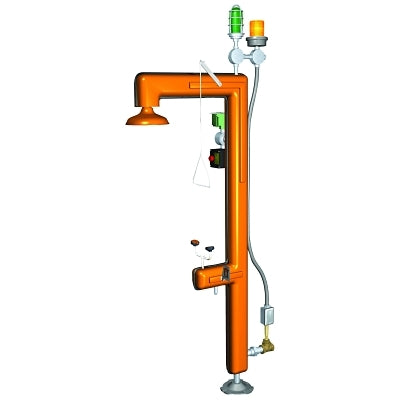

HEATED SAFETY STATION W/EYE/FACE WASH BOT. INLET

Furnished with stainless steel actuating arm and 29” stainless steel pull rod
Heating is controlled by thermostat that shuts heat off when ambient temperature is over 50°F
Self-regulating heat tracing cable with regulating heat tracing cable with external braid guards
Shower Valve: 1” IPS brass stay-open ball valve
Spray Head Assembly: Two FS-Plus™ spray heads, each head has a “flip top” dust cover and internal flow control

Quantity 1 EA/EA

Specifications

Bowl Height=36 in
Capacity Vol. [Nom]=10 gal
Flow [Nom]=0.05 gal/min
Height [Nom]=90 in
Inlet Size=1 1/4 in NPT(F)
Shower Head Diam=10 in
Shower Head Material=Safety Orange ABS
