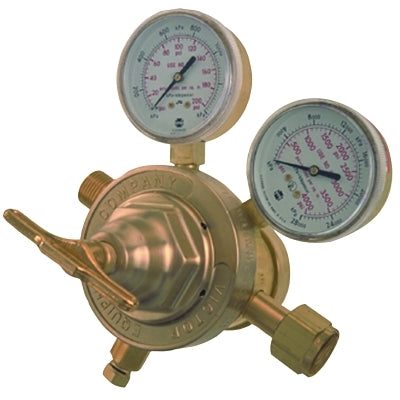

ETS4-125-590 EDGE TWO STAGE

Precise and constant outlet pressure
Forged brass housing cap
Stem type seat mechanism
Delrin® cap bushing for smooth adjustments
External self reseating relief valve (Not designed to protect downstream apparatus)

Quantity 25 EA/BOX

Specifications

Body Material=Forged Brass
Depth [Nom]=7 3/8 in
Diaphragm Material=Stainless Steel
Diaphragm Size=2 in; 3 1/4 in
Filter Material=Bronze; Sintered
Gas Type=Air; Oxygen; Inert Gas
Gauge Size=2 1/2 in
Height [Nom]=8 in
Inlet Connection=CGA 590
Inlet Pressure [Max]=3
000 psig
Outlet Connection=5/8 in - 18 LH(F)
Outlet Pressure [Max]=125 psig
Outlet Pressure [Min]=5 psig
Width [Nom]=8 in
Wt.=7.06 lb
