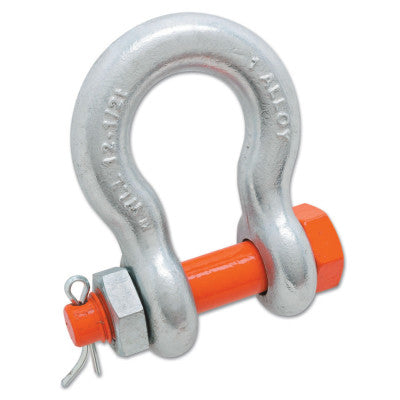

Alloy Anchor Galvanized Shackles, 5/8 in Bail Size, 5 Tons, Bolt Shackle

Lettering placement is strategically located to avoid top of shackle bow to prevent fraying of synthetic slings
Included angle between markings provides a quick visual guide for checking the load angle for double and single leg hitches
Markings of shackle include Date Code, WLL and Size on one side and Campbell, USA and CE on the other
Drop forged for superior strength and performance
5:1 design factor
Working Load Limit (WLL) rated in metric tons (t)

Quantity 1EA

Specifications

Bail Size=5/8 in
Color=Orange
Finish=Galvanized
Inner Length [Nom]=2 3/8 in
Inner Width [Nom]=1 11/16 in
Locking Type=Bolt
Material=Forged Alloy Steel
Opening Size [Nom]=1 1/16 in
Pin Size [Nom]=3/4 in
Type=Bolt Shackle
Working Load Limit=5 t
Wt.=1.4 lb
