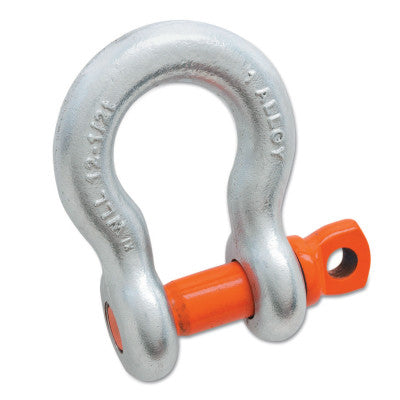

Alloy Anchor Galvanized Shackles, 1 in Bail Size, 6 Tons, Screw Pin Shackle

Lettering placement is strategically located to avoid top of shackle bow to prevent fraying of synthetic slings
Included angle between markings provides a quick visual guide for checking the load angle for double and single leg hitches
Markings of shackle include Date Code, WLL and Size on one side and Campbell, USA and CE on the other
Drop forged for superior strength and performance
5:1 design factor
Working Load Limit (WLL) rated in metric tons (t)

Quantity 1EA

Specifications

Bail Size=1 in
Color=Orange
Eye Outer Size=4.5 in
Finish=Galvanized
Height [Nom]=2 1/2 in
Inner Length [Nom]=3 3/4 in
Inner Width [Nom]=2 1/2 in
Length [Nom]=6 3/4 in
Locking Type=Screw Pin
Material=Forged Alloy Steel
Opening Size [Nom]=1 11/16 in
Pin Size [Nom]=1 1/8 in
Type=Screw Pin Shackle
Width [Nom]=5 1/2 in
Working Load Limit=12 1/2 t
Wt.=5.7 lb
