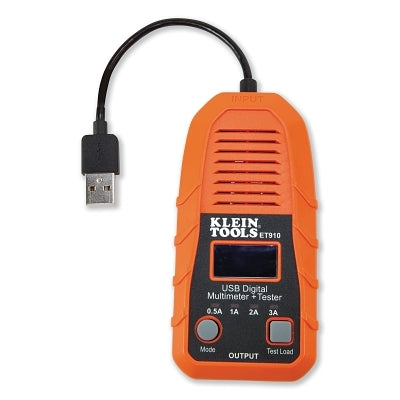

USB DIGITAL METER AND TESTER USB-A (TYPE A)
USB DIGITAL METER AND TESTER USB-A (TYPE A)
SKU:409-ET910
The ET910 is a USB digital meter and tester combination for most common USB-A ports, including Qualcomm Quick Charge® ports
It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously
It can also test the maximum current delivery capability of the USB port with built-in fixed loads so user need not connect to an external load
It will function with any USB-A port that has the ability to deliver power. It requires NO batteries as it draws power from the power source to function
Quantity 1 EA/EA
Specifications
Body Material=Polymer
Display Type=LCD
Function=USB Port Voltage
Current
Capacity
Energy
Resistance (Calculated)
Max Current
Height [Nom]=0.98 in
Length [Nom]=4.31 in
Operating Temp. [Max]=122 °F
Operating Temp. [Min]=14 °F
Power Source=USB-A
Voltage [Max]=20V DC
Voltage [Min]=3V DC
Width [Nom]=2.15 in
Wt.=2.80 oz
