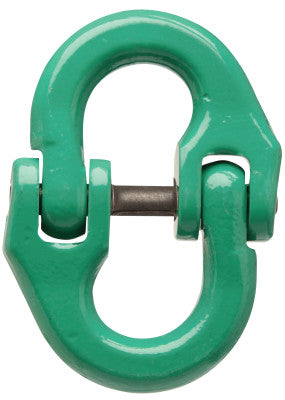

Quik-Alloy Coupling Master Links, 1 in, 47,700 lb

Standard material: System 10
Loop half body through attachment, the other through chain, fit together
Place stud assembly and alloy locking pin in link
Drive locking pin in until snap ring engages recessed portion of pin
Link is disassembled by simply driving locking pin out

Quantity 1EA

Specifications

Chain Size [Max]=1 in
Distance Between Points of Lift (Headroom) [Nom]=5 7/8 in
Finish=Painted Green
Grade=80
Material=Alloy Steel
Type=Folding Link
Working Load Limit=47,700 lb
Wt.=8.43 lb
