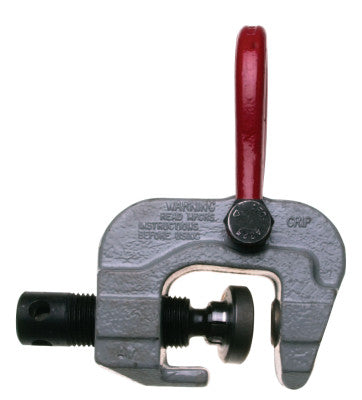

SAC Plate Clamps, 1 ton WWL, 1 in Grip

Recommended for turning plates from horizontal to vertical as well as through a 180 degree arc
The convex, serrated cam swivels on a ball joint so that the area of cam engagement increases as load increases
Drop forged body and shackle
100% proof tested with certificate of test attached to each clamp
* Note screw needs to be hand tight only! Do not over tighten

Quantity 1EA

Specifications

Grip Cap. [Max]=1 in
Locking Type=Load Activated; Screw
Material=Forged Steel
Mounting=Fixed Eye
Neck Depth=2 1/4 in
Type=Plate Clamp
Working Load Limit=1 ton
Wt.=6 1/4 lb
