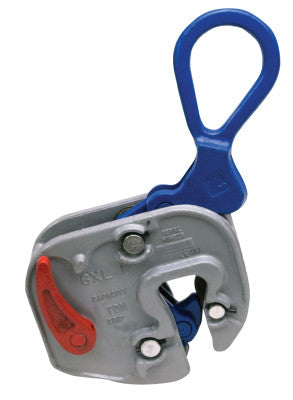

GXL Clamps, 1/2 ton WWL, 1/16 in-5/8 in Grip

Available in a 1/2, 1 and 2 ton capacity
Drop forged and heat treated components, with gripping surfaces of case hardened alloy steel
Exclusive feature is a patented wear indicator system
When any of cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam
Newly designed " Cam Engaging Lever" keeps the cam in contact with the plate
The tension arm and spring mechanism facilitate attaching and removing the clamp
These clamps will not lift plate when in the "lever open" position

Quantity 1EA

Specifications

Grip Cap. [Max]=5/8 in
Grip Cap. [Min]=1/16 in
Locking Type=Load Activated
Material=Forged Steel
Mounting=Fixed Eye
Neck Depth=2 1/8 in
Type=Plate Clamp
Working Load Limit=1/2 ton
Wt.=7 lb
