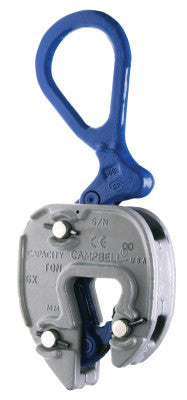

GX Clamps, 1/2 ton WWL, 1/16 in-5/8 in Grip

"GX" clamp is entirely drop forged and heat treated
Can be used for both vertical and horizontal-to-vertical lifting
Exclusive feature is a patented wear indicator system
When any of cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam
Shackle and "G" link combined into one part for fewer stress points and less chance of side loading damage
*Note: The pad should be replaced at the same time as the cam
100% proof tested with certificate of test attached to each clamp

Quantity 1EA

Specifications

Grip Cap. [Max]=5/8 in
Grip Cap. [Min]=1/16 in
Locking Type=Load Activated
Material=Forged Steel
Mounting=Fixed Eye
Neck Depth=2 3/16 in
Type=Plate Clamp
Working Load Limit=1/2 ton
Wt.=4 lb
