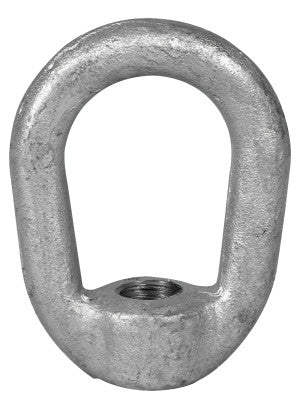

#3A 3/8" 776-G EYE NUT2 250# 1/2" THREAD

Quantity 1EA

Specifications

Bail Size=3/8 in
Coating=Galvanized Zinc
Eye Outer Size=2 in
Eye Size=3A
Inner Length [Nom]=1 1/2 in
Inner Width [Max]=1 1/4 in
Inner Width [Min]=1 in
Load (Max) @ Angle=2,250 lb @ 0 ; 1,235 lb @ 15 ; 785 lb @ 30 ; 560 lb @ 45
Material=Forged Carbon Steel
Overall Length [Nom]=2 15/32 in
Thread - TPI or Pitch=1/2 in (UNC)
Thread Length [Nom]=19/32 in
Thread Size [Nom]=1/2 in (UNC)
Type=Eye Nut
Wt.=0.27 lb
