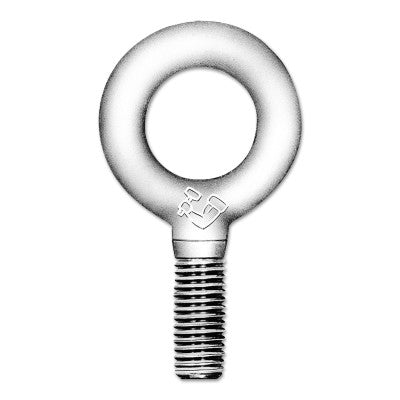

Plain Pattern Eye Bolts, 1/4 in - 20 UNC

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=3/4 in
Eye Outer Size=1 3/16 in
Load (Max) @ Angle=500 lb @ 0 ; 70 lb @ 30
Load Cap. [Nom]=500 lb
Material=Forged Carbon Steel
Overall Length [Nom]=1 in

Quantity=1 per box
Thread - TPI or Pitch=1/4 in - 20 UNC
Type=Eye Bolt
Wt.=0.05 lb
