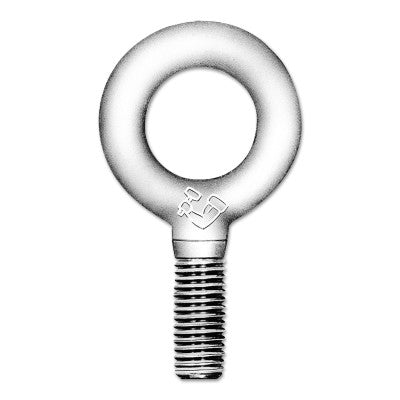

Plain Pattern Eye Bolts, 3/8 x 1 1/4

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=1 in
Eye Outer Size=1 21/32 in
Load (Max) @ Angle=1,400 lb @ 0 ; 600 lb @ 30 ; 300 lb @ 45 ; 250 lb @ 60 ; 200 lb @ 90
Load Cap. [Nom]=1300 lb
Material=Forged Carbon Steel
Overall Length [Nom]=1 1/4 in

Quantity=1 per box
Thread - TPI or Pitch=3/8 in - 16 UNC
Type=Eye Bolt
Wt.=0.13 lb
