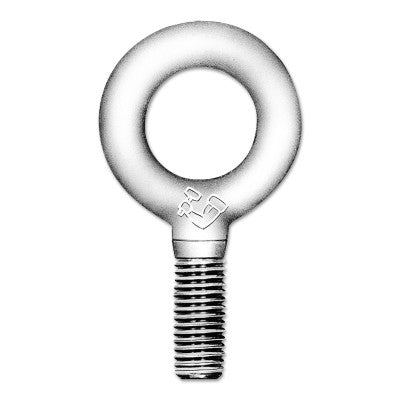

Plain Pattern Eye Bolts, 5/8 in - 11 UNC

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=1 3/8 in
Eye Outer Size=2 9/16 in
Load (Max) @ Angle=4,000 lb @ 0 ; 1,400 lb @ 30 ; 950 lb @ 45 ; 800 lb @ 60 ; 700 lb @ 90
Load Cap. [Nom]=4000 lb
Material=Forged Carbon Steel
Overall Length [Nom]=1 3/4 in

Quantity=1 per box
Thread - TPI or Pitch=5/8 in - 11 UNC
Type=Eye Bolt
Wt.=0.59 lb
