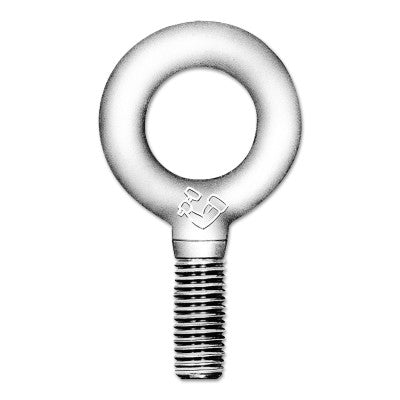

Plain Pattern Eye Bolts, 3/4 x 2

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=1 1/2 in
Eye Outer Size=2 13/16 in
Load (Max) @ Angle=6,000 lb @ 0 ; 2,200 lb @ 30 ; 1,600 lb @ 45 ; 1,200 lb @ 60 ; 1,050 lb @ 90
Load Cap. [Nom]=5000 lb
Material=Forged Carbon Steel
Overall Length [Nom]=2 in

Quantity=1 per box
Thread - TPI or Pitch=3/4 in - 10 UNC
Type=Eye Bolt
Wt.=0.83 lb
