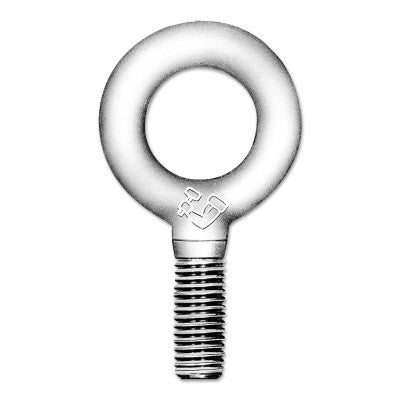

Plain Pattern Eye Bolts, 7/8 x 2 1/4

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=1 11/16 in
Eye Outer Size=3 1/4 in
Load (Max) @ Angle=7,200 lb @ 0 ; 2,850 lb @ 30 ; 2,000 lb @ 45 ; 1,750 lb @ 60 ; 1,500 lb @ 90
Load Cap. [Nom]=7000 lb
Material=Forged Carbon Steel
Overall Length [Nom]=2 1/4 in

Quantity=1 per box
Thread - TPI or Pitch=7/8 in - 9 UNC
Type=Eye Bolt
Wt.=1.36 lb
