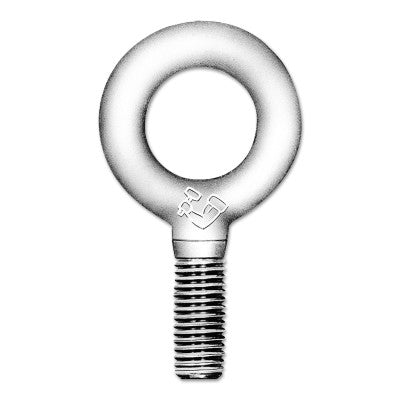

Shoulder Pattern Eye Bolts, 5/16 in - 18 UNC

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=7/8 in
Eye Outer Size=1 7/16 in
Load (Max) @ Angle=800 lb @ 0 ; 225 lb @ 30
Load Cap. [Nom]=800 lb
Material=Forged Carbon Steel
Overall Length [Nom]=1 1/8 in

Quantity=1 per box
Thread - TPI or Pitch=5/16 in - 18 UNC
Type=Eye Bolt-Shouldered
Wt.=0.08 lb
