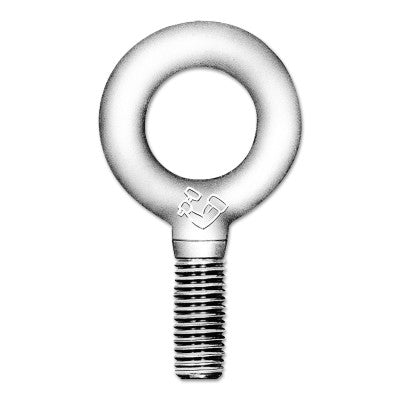

Eye Bolt Shoulder Pattern 1/2 in - 13 UNC

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=1 3/16 in
Eye Outer Size=2 1/16 in
Load (Max) @ Angle=2,600 lb @ 0 ; 1,200 lb @ 30 ; 650 lb @ 45 ; 600 lb @ 60 ; 525 lb @ 90
Load Cap. [Nom]=2600 lb
Material=Forged Carbon Steel
Overall Length [Nom]=1 1/2 in

Quantity=1 per box
Thread - TPI or Pitch=1/2 in - 13 UNC
Type=Eye Bolt-Shouldered
Wt.=0.31 lb
