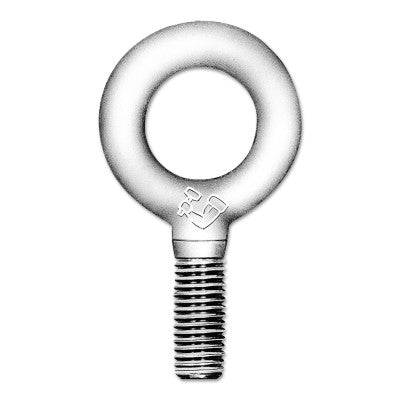

Shoulder Pattern Eye Bolts, 5/8 x 1 3/4

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=1 3/8 in
Eye Outer Size=2 1/2 in
Load (Max) @ Angle=4,000 lb @ 0 ; 2,000 lb @ 30 ; 1,200 lb @ 45 ; 950 lb @ 60 ; 800 lb @ 90
Load Cap. [Nom]=4000 lb
Material=Forged Carbon Steel
Overall Length [Nom]=1 3/4 in

Quantity=1 per box
Thread - TPI or Pitch=5/8 in - 11 UNC
Type=Eye Bolt-Shouldered
Wt.=0.59 lb
