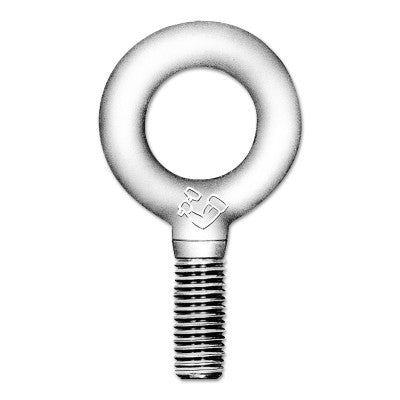

Shoulder Pattern Eye Bolts, 1 in - 8 UNC

Drop forged are quenched and tempered for optimum strength
Furnished with Unified National Coarse (U.N.C.) threads
Special threads and lengths

Quantity 1EA

Specifications

Eye Inner Diam [Nom]=1 13/16 in
Eye Outer Size=3 9/16 in
Load (Max) @ Angle=9,500 lb @ 0 ; 5,000 lb @ 30 ; 3,600 lb @ 45 ; 2,800 lb @ 60 ; 2,400 lb @ 90
Load Cap. [Nom]=9500 lb
Material=Forged Carbon Steel
Overall Length [Nom]=2 1/2 in

Quantity=1 per box
Thread - TPI or Pitch=1 in - 8 UNC
Type=Eye Bolt-Shouldered
Wt.=2.09 lb
