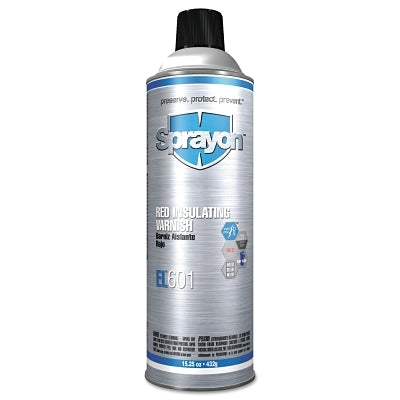

INSULATING VARNISH RED AEROSOL

An insulating spray for general coating, impregnating and insulating electrical and electronic work
Excellent adhesion, flexibility, and water resistance
Protects surfaces against oils, moisture, acid and alkalis

Quantity 1 EA/EA

Specifications

Applications=Armatures; Bus Bars; Commutator Ends; Field Coils; Motor Windings; Rings and Frames; Sealing Electrical and Elctroonic Components
Stator Windings; Switchboards; Transformers
Capacity Vol. [Nom]=15.25 oz
Color=Red
Container Size=15.25 oz
Coverage @ Vol.=10 ft²
Full Cure Time @ Temp.=30 min
Packing Type=Aerosol Can
Resistance=Oil; Moisture; Acids; Alkalids
Specific Gravity [Nom]=0.79
Temp. Range [Max]=400° F
Temp. Range [Min]=310° F
Type=Insulating Varnish
Viscosity [Nom]=?20.5 mm²/s
VOC=421 g/L
Wt.=18.30 lb
