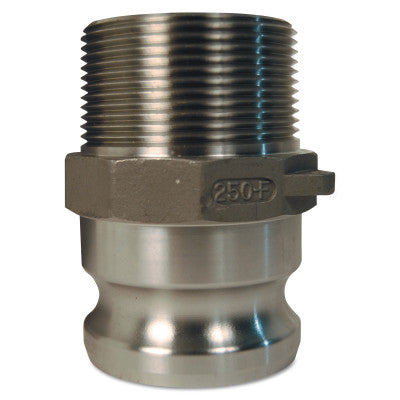

Global Type F Adapters, 3 in, Male/Male, 316 Stainless Steel

To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down
Uncoupling is as quick and simple as coupling - Just lift the cam arms and remove the adapter
Designed for use with liquids
Designed to interchange with all products produced to A-A-59326D

Quantity 1EA

Specifications

Applications=Liquid
Body Material=316 Stainless Steel
Body Size=3 in
Connection Type=Male/Male
Dia. [Nom]=3 19/32 in
Length [Nom]=4 3/32 in
Male Quick=3 in
Male Thread=3 in
Operating Pressure [Max]=125 psi
Operating Temp. [Max]=70 F

Quantity=1 each
Shape=Straight
Thread - TPI or Pitch=3 in - 8 NPT
Thread Size X Thread Size=3 x 3 in
Type=Cam & Groove Adapter
Wt.=3.15 lb
