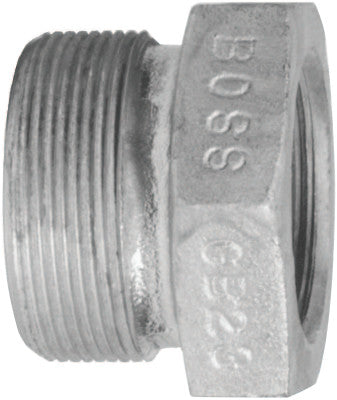

Boss Ground Joint Spuds, 1 3/8 in, Plated Steel

The spud part of the coupling serves as one half of the Boss Ground Joint connection and is usually fixed to the equipment
The stem part that is clamped to the hose is the other half
The two halves are connected or disconnected by rotating the wing nut on the spud
When connected they achieve both a mechanical and a pressure seal
Leakproof and easy to seal
Recommended for steam service up to 450F
Works with existing Ground Joint fittings

Quantity 1EA

Specifications

Body Material=Plated Steel
Connection Type=Male/Female
Female Thread=3/4 in
Length [Nom]=1 3/8 in
Male Thread=1 1/2 in
Material=Plated Steel
Operating Temp. [Max]=450 F

Quantity=50 per pack
Thread - TPI or Pitch=3/4 in
Type=Connector
Used With=Boss Ground Joint Fitting; Hose
Width [Nom]=1 7/8 in
Wt.=0.7 lb
