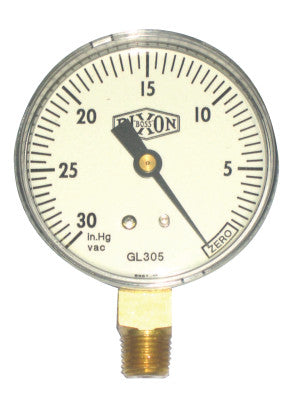

Vacuum Gauges, 1/4 in NPT(M), Bottom Mount

Designed for long and reliable service under rugged conditions
Can be used for pumps, hydraulic and pneumatic systems, compressors, machine tools
For other installations where it is necessary to have a gauge with a non-corrosive movement
PowerFlex movement with polyester segment

Quantity 10EA/BX

Specifications

Accuracy=±3-2-3%
Body Material=ABS
Case Material=ABS
Color=Black
Connection Size [Nom]=1/4 in NPT(M)
Connector Type=NPT
Dia. [Nom]=2 in
Display Type=Dial
Gauge Size=2 in
Lens Material=Polycarbonate
Measuring System=Imperial
Mounting=Bottom
Operating Pressure [Max]=30 psi
Operating Temp. [Max]=150 F
Operating Temp. [Min]=-40 F
Range 1=0 to 30 psi
Thread Size [Nom]=1/4 in
Type=Vacuum
Used With=Compressors; Hydraulic and Pneumatic Systems; Machine Tools; Pumps
Wt.=0.01 lb
