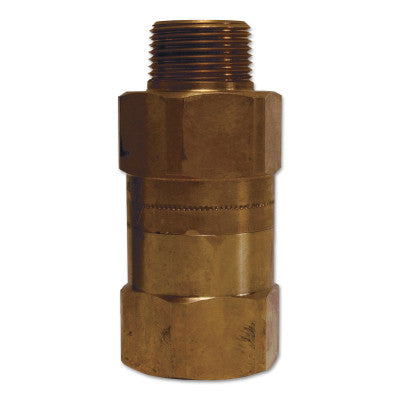

Safety Shut-Off Valves, 1 in (NPT) Inlet, Male, Brass

High flow valve to provide optimum performance
Controls excess air flow (SCFM) in only one direction
Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
Solid brass body and valve
Stainless steel spring and roll pin
Used in temporary plant/factory air lines, construction sites, shipyards or utilities
Not for use in applications where 100% of the available air is required like sand blast, pile driving rigs, expansion joint blow down pipes, etc

Quantity 1EA

Specifications

Body Material=Brass
Connection Type=Male
Designated Fluid=Air
Dia. [Nom]=1 7/8 in
Flow [Max]=320 CFM
Flow [Min]=280 CFM
Inlet Size=1 in (NPT)
Inlet Type=Male Thread
Length [Nom]=4 1/4 in
Material=Brass
Operating Pressure [Max]=350 psi
Operating Temp. [Max]=250 F
Outlet Size=1 in (NPT)
Outlet Type=Female Thread
Stem Material=Stainless Steel
Type=Shut-Off Check Valve
Width [Nom]=1 7/8 in
Wt.=1.79 lb
